"NeoDome Studio" is a domed house built on the same platform as its more luxurious counterparts from the Diamond lineup. It differs from them in the size of the window — a French window 2.2 meters high consists of 6 segments. It is enough for good insolation, but this, of course, is not the luxury of a diamond.
The NeoDome Studio model is for you if the task is to reduce the view and direct the attention of guests to a certain view point. In addition, the energy efficiency of this house is higher than that of other models of the same area — no matter how good thermal conductivity characteristics modern windows have, they cannot exceed 150 cm of high-quality heat insulation.
Shape 7/12 sphere
Diameter 6.8 m
Height 3.75 m
Floor area 30 m² (+8 m²)
Glazing area 6.5 m²
Capacity 2-4 people
Diameter 6.8 m
Height 3.75 m
Floor area 30 m² (+8 m²)
Glazing area 6.5 m²
Capacity 2-4 people
Studio
Detailed description and pricing
Design
NeoDome has developed an optimal layout and universal design of wall panels, suitable for a variety of interior solutions

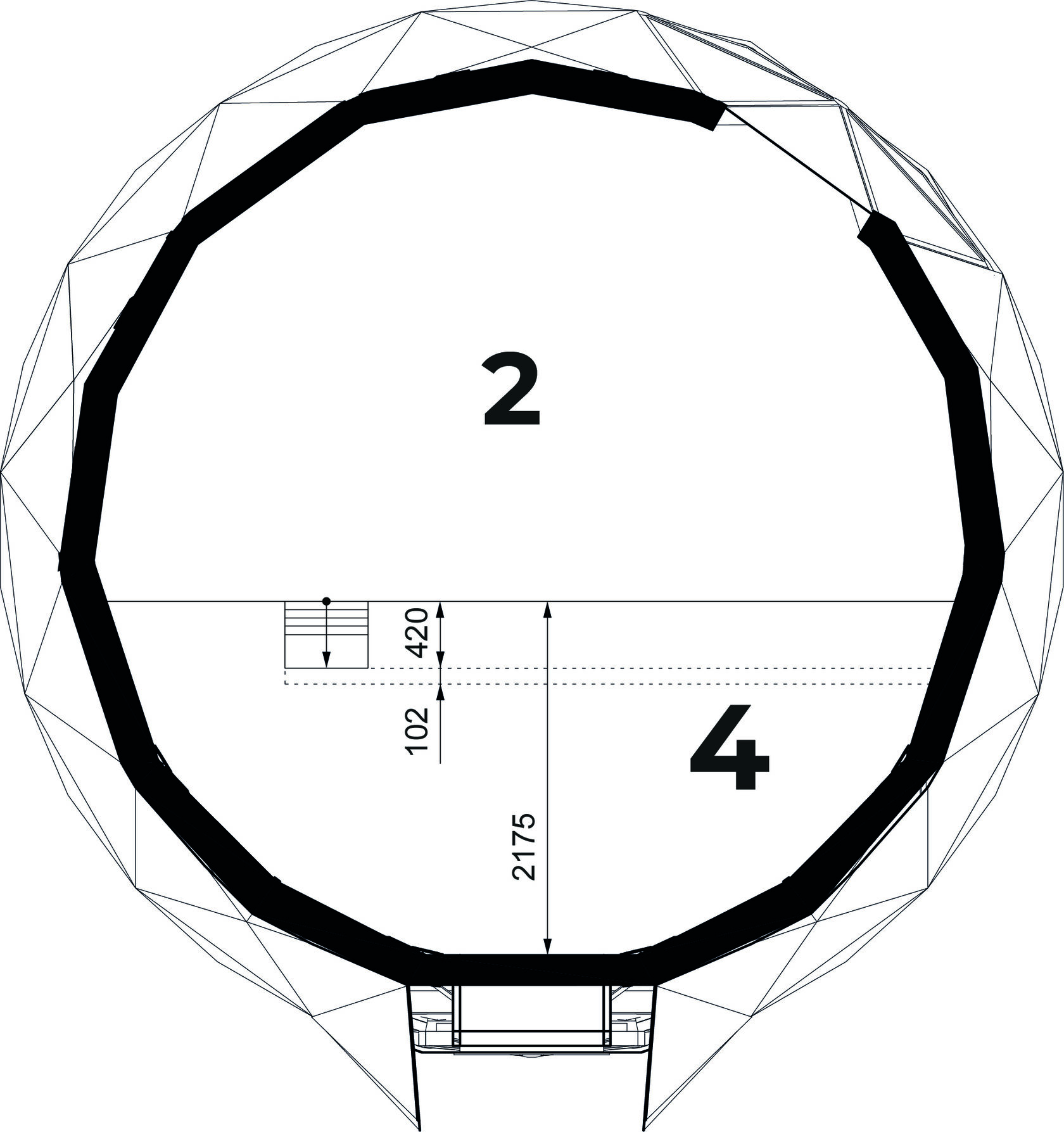

Standard planning solution
1. Entrance hall 6 m² 2. Living room 20.5 m² 3. Bathroom 3.5 m² 4. Mezzanine 8 m²
Mezzanine
The area of the house in the basic version is 30 m²,
can be extended with a mezzanine + 8 m²
can be extended with a mezzanine + 8 m²
- Wooden frame with "NeoDome" connectors
- Entrance group and door with porthole
- Structural glazing kit + opening windows
- External casing: 9 mm plywood triangular panel set
- Set of steam-wind protective films
- Outer shell: flexible tile or mirror glass
- Internal casing: 6.5mm triangular plywood panel set
- Dome base set (truss beam, floor joists)
- Set of boards for floor covering 18 mm
- Set of heat insulation for the floor (150 mm)
- Set of heat insulation for walls (150 mm)
- Typical finish "NeoDome" (set of flashings and overlays)
The composition of the house kit
Additional charge
- Installation of a house kit
- Mezzanine and internal partition
- Foundation (depending on the type of foundation and terrain chosen)
- Delivery of house kits (depending on transport accessibility)
- Terrace
Individually calculated
- Conditioning system
- Heating system (warm floor / mounted electric convectors / fireplace)
- Finishing and installation of final devices
